3D liab qab-qhov muag LED mobile tsheb cabin: seamless 3D stitching tsim dynamic pom teebmeem

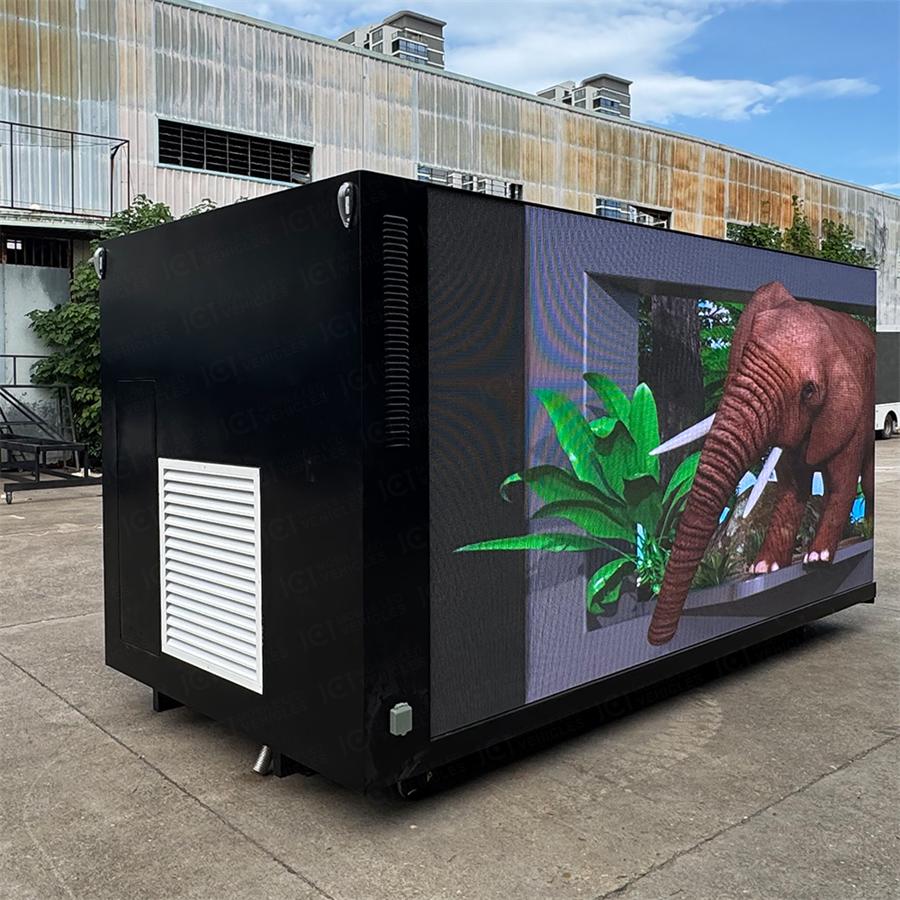

| EW3360 3D Truck Lub Cev | |||
| Specification | |||
| Chassis (cov neeg siv khoom muab) | |||
| Hom | Dongfeng tsheb | Dimension | 5995x2160x3240mm |
| Hwj chim | Dongfeng | Tag nrho pawg | 4 495 kwg |
| Axle puag | 3 360mm | Unladen loj | 4300 KWG |
| Emission txheem | National standard III | Rooj | 2 |
| LED puv xim npo (Sab laug thiab sab xis + Sab nraub qaum) | |||
| Dimension | 3840mm * 1920mm * 2sides + rear sab 1920 * 1920mm | Module Loj | 320mm (W) * 160mm (H) |
| Lub teeb hom | Kinglight | Dot Pitch | 4mm ib |
| Brightness | ≥6500cd/㎡ | Lub neej ntev | 100,000 teev |
| Kev siv hluav taws xob nruab nrab | 250w / ㎡ | Kev siv hluav taws xob Max | 700w/w |
| Fais fab mov | G-zog | DRIVE IC | ICDL 2503 |
| Tau txais daim npav | Nova MRV 412 | Tus nqi tshiab | ib 3840 |
| Cov khoom siv txee | Hlau | Txee hnyav | Hlau hnyav 50 kg |
| Kev tu hom | Kev pabcuam nram qab | Pixel qauv | 1R1G1B |
| LED ntim txoj kev | SMD1921 | Kev khiav hauj lwm voltage | DC 5 V |
| Module zog | 18 W | scanning txoj kev | 1/8 |
| HUB | HUB 75 | Pixel ceev | 62500 Dots/㎡ |
| Module daws teeb meem | 80 * 40 Dots | Ncej tus nqi / Greyscale, xim | 60Hz, 13 ntsis |
| Saib lub kaum sab xis, npo flatness, module clearance | H: 120 ° V: 120 °, 0.5mm, 0.5mm | Ua haujlwm kub | -20 ~ 50 ℃ |
| Tswj qhov system | |||
| Video processor | NOVA V400 | Tau txais daim npav | SIB 412 |
| Luminance sensor | NOVA | ||
| Fais fab parameter (sab nraud prower mov) | |||
| Input voltage | Ib theem 4 xaim 240V | Output voltage | 120 V |
| Inrush tam sim no | 70 A | Kev siv hluav taws xob nruab nrab | 230 W/㎡ |
| Suab system | |||
| Lub zog amplifier | 500 W | Hais lus | 100 W |

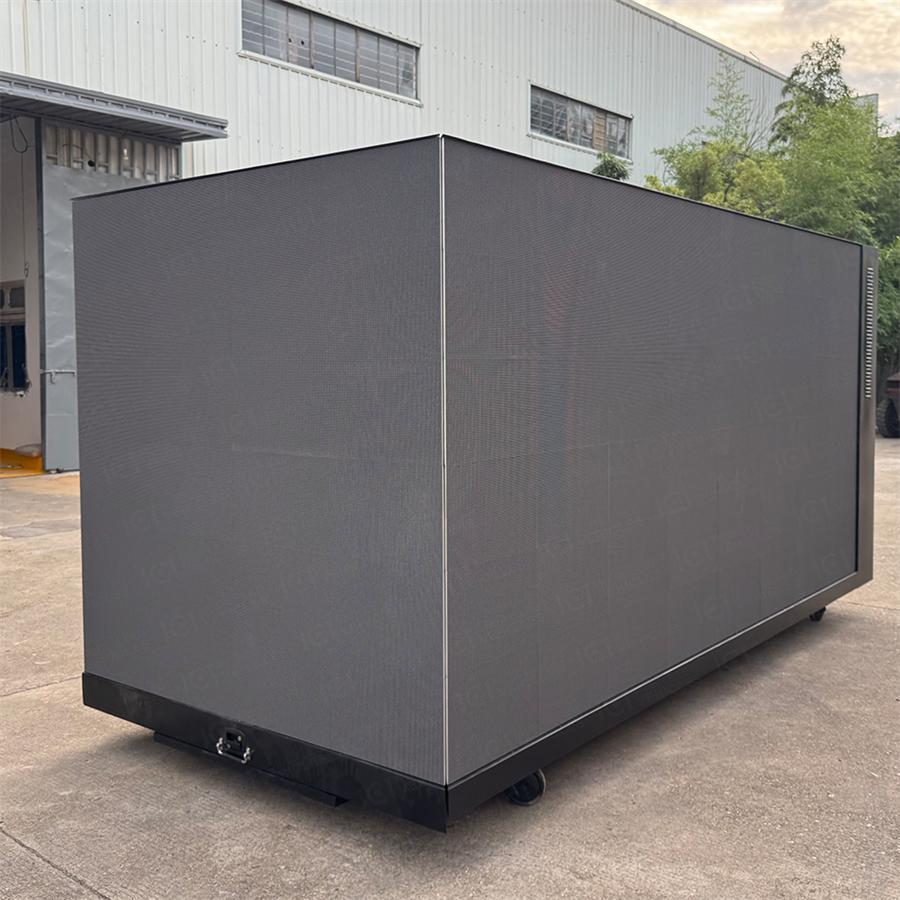

Nrog nws cov qauv tsim tshwj xeeb qhov ntev, LED tsheb txaj ua tiav peb-dimensional kev pab cuam hla sab laug, sab xis, thiab sab nraub qaum. Qhov kev tsim qauv no ua kom muaj txiaj ntsig zoo rau cov neeg tuaj saib tsis hais txog kev khiav tsheb khiav, ua kom muaj kev txhawb nqa kom ncav cuag.

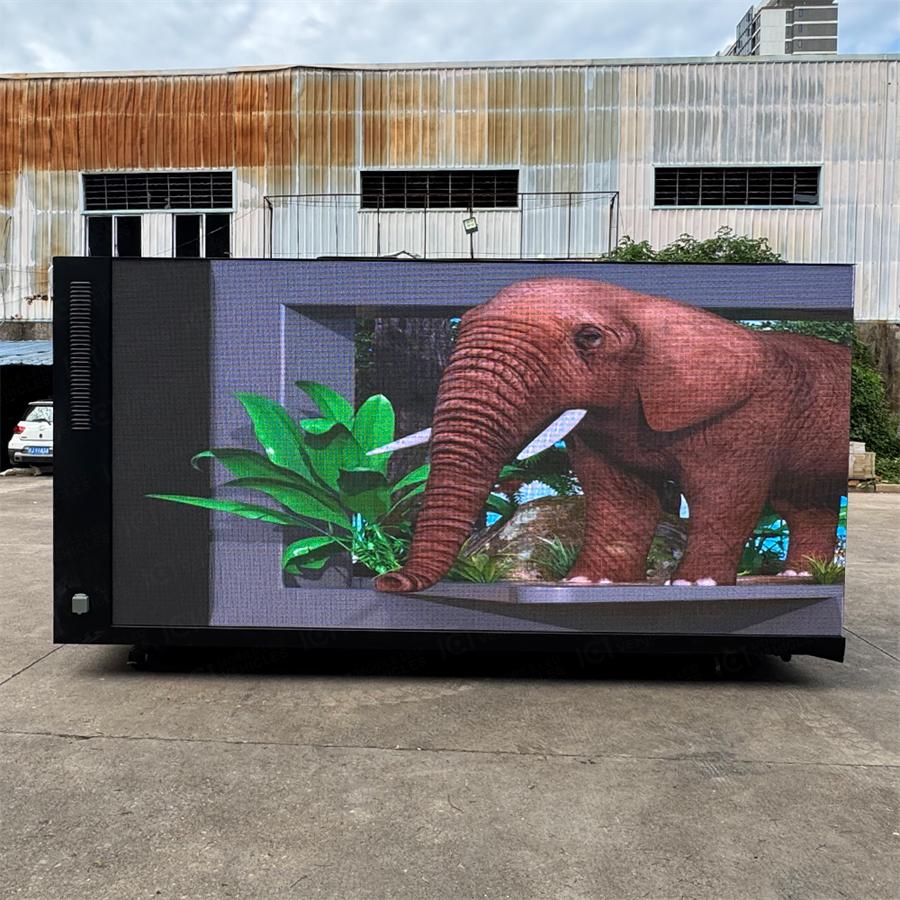

Dual-sided loj cov ntxaij vab tshaus ntawm ob sab kom paub meej cov kev pab cuam yam tsis muaj cov neeg taug kev uas ploj lawm: Nruab nrog 3840mm × 1920mm dual HD sab nraum zoov LED cov ntxaij vab tshaus ntawm ob sab, ib qho tig mus rau txoj kab tsheb thiab lwm qhov ntawm txoj kev taug kev, ob qho tib si kev taw qhia ntawm cov neeg taug kev tuaj yeem pom cov duab meej meej. Piv txwv li, thaum saib xyuas cov chaw lag luam, nws tsis yog tsuas yog npog cov neeg caij tsheb hla xwb tab sis kuj nyiam cov neeg taug kev ntawm txoj kev, ua tiav 100% kev tshaj tawm kev tshaj tawm zoo dua piv rau cov ntxaij vab tshaus ib sab.

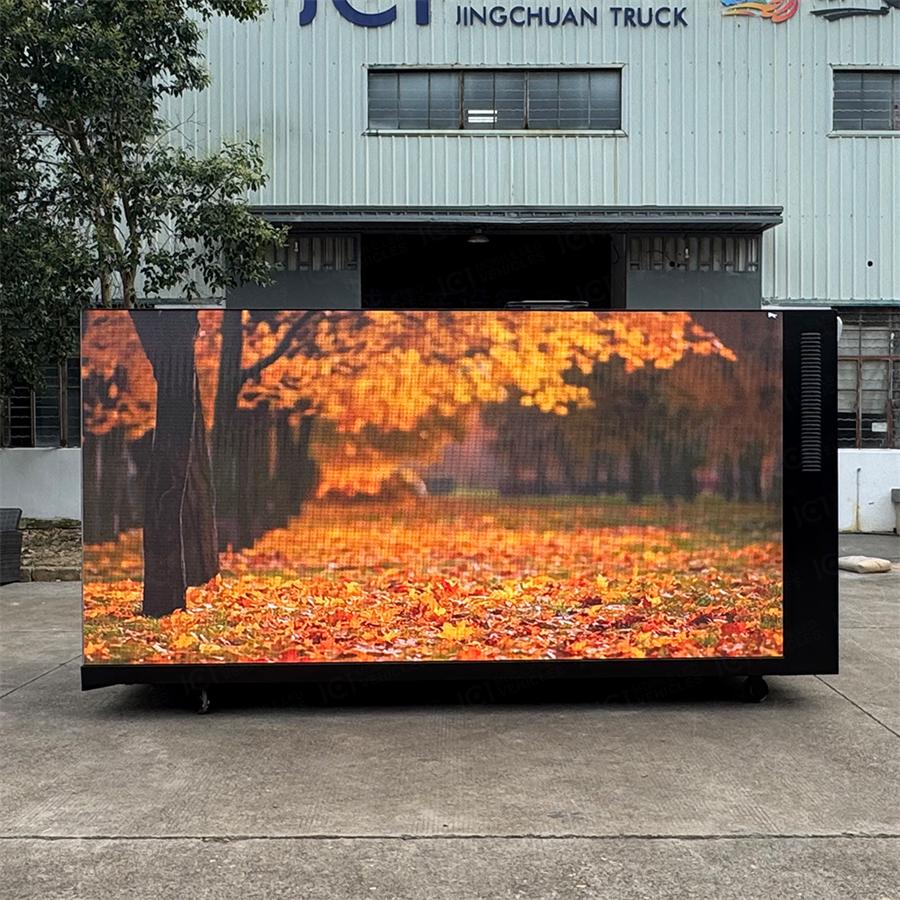

Lub rear-mounted screen txhim khu lub rear visibility thiab ua rau pom qhov khoob: Nruab nrog 1920mm × 1920mm high-txhais sab nraum zoov LED zaub, lub tsheb lub tsheb kawg kov yeej cov tsoos 'rov qab tshaj tawm tsis muaj dab tsi' ntawm cov neeg nqa khoom. Thaum muaj kev sib tsoo lossis nres ib ntus, lub vijtsam nraub qaum qhia cov lus hais txog cov npe thiab cov kev tshwm sim saib ua ntej, kom ntseeg tau tias cov ntaub ntawv mus txog ob qho tib si hauv qab tsheb thiab cov neeg taug kev, tsim kom muaj '360-degree qhov muag tsis pom qhov muag tsis pom kev'.
Lub vijtsam tsis yog tsuas yog "ntau dua", tab sis kuj tseem muaj kev cuam tshuam hauv "daim duab zoo" - kev sib xyaw ua ke ntawm cov ntsiab lus siab thiab kev siv tshuab seamless stitching, ntxiv rau qhov muag liab qab 3D nyhuv, tso cai rau cov duab txav los nthuav tawm cov yeeb yaj kiab-qib pom kev.
High-definition clarity nrog cov ntsiab lus ntse thiab qhov ntev-ntev sharpness: Cov zaub puv npo siv HD sab nraum zoov tshwj xeeb LED modules, kom cov neeg saib tuaj yeem pom cov ntsiab lus hauv video seb nws yog hom yeeb yaj kiab tshaj tawm, cov duab nthuav dav, lossis cov ntsiab lus dynamic liab qab-qhov muag 3D.

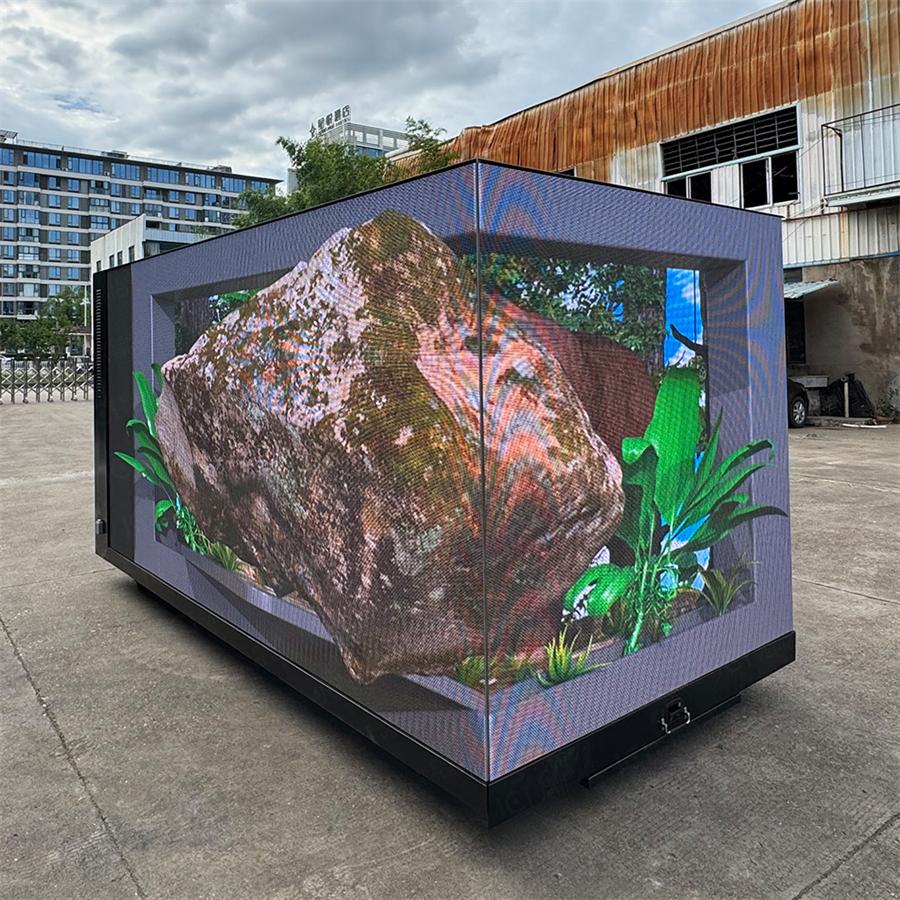

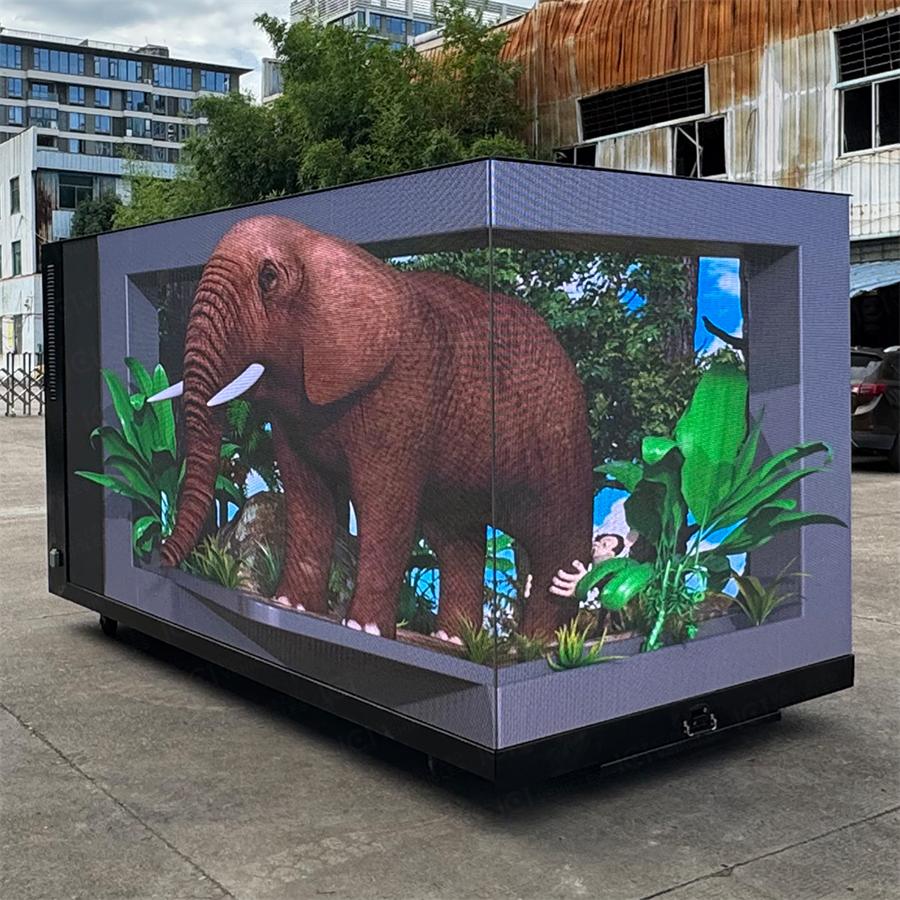

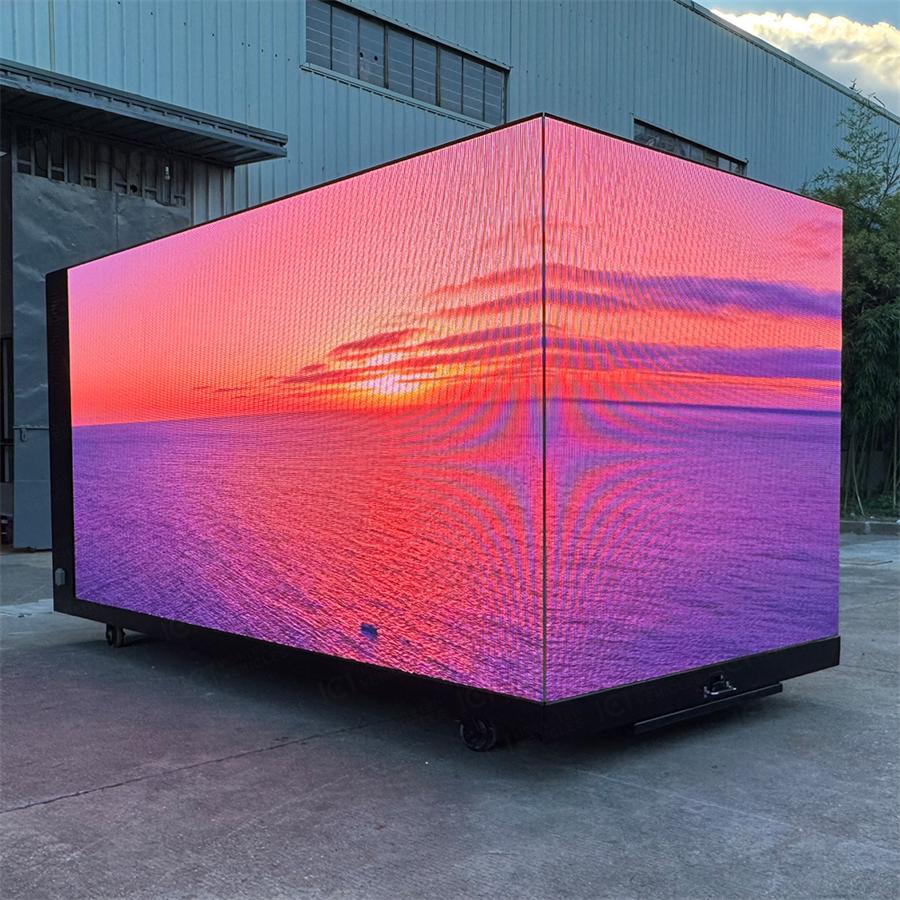

Seamless kev koom ua ke muab ib qho seamless, ua tiav kev pom kev nrog liab qab-qhov muag 3D immersion. Sab laug, sab xis, thiab nraub qaum cov ntxaij vab tshaus siv cov thev naus laus zis sib xyaw ua ke kom tshem tawm qhov sib txawv ntawm lub cev ntawm cov qauv, tsim kom muaj kev sib koom ua ke 'ib qho screen' nyhuv. Paired nrog customized liab qab-qhov muag 3D video ntsiab lus-xws li hom logos 'leaping tawm ntawm lub screen' thiab cov khoom 'floating nyob rau hauv 3D' - qhov tsim no muab ib tug striking pom kev cuam tshuam, ho txhim khu lub cim nco qab.
Sab nraum zoov-qib kev tiv thaiv, nag thiab cua tiv thaiv, nrog cov duab zoo li qub: Lub vijtsam saum npoo yog npog nrog cov iav siab-pob tshab khawb-tiv taus, featuring IP65 tsis muaj dej tsis zoo thiab tsis muaj plua plav, thaum tseem tiv thaiv UV rays thiab huab cua kub (20 ℃ ~ 60 ℃). Txawm tias thaum huab cua los nag los yog plua plav, daim duab tseem pom tseeb thiab meej, ua kom muaj kev txhawb nqa zoo txawm tias huab cua puag.

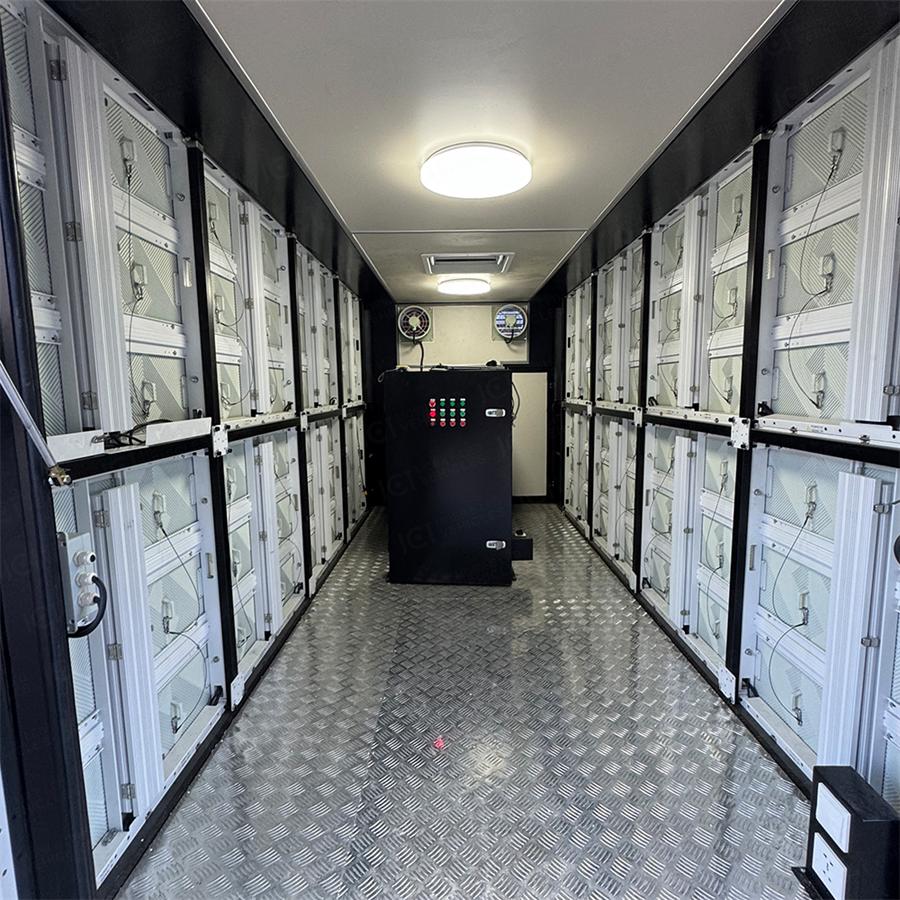

Txhawm rau daws qhov mob cov ntsiab lus ntawm "kev siv hluav taws xob nyuaj thiab kev hloov pauv nyuaj" hauv cov xwm txheej ntawm lub xov tooj ntawm tes, cov khoom lag luam tau tshwj xeeb hauv kev tsim lub zog thiab cov qauv tsim, kom nws hloov tau yooj yim thiab tsis tshua muaj teeb meem siv.

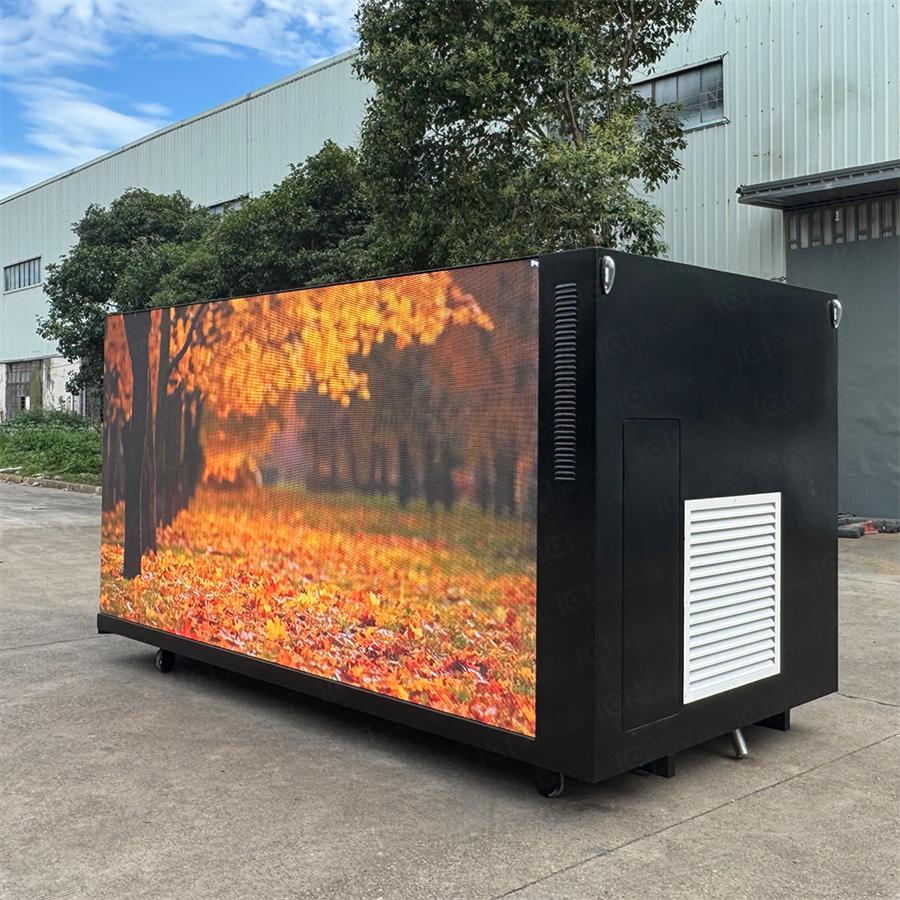

15kW EPA-certified generator teeb nrog kev ywj pheej fais fab mov: Featuring built-in 15kW diesel generator tau ntawv pov thawj los ntawm US Environmental Protection Agency (EPA) nrog cov qauv emission raws li kev cai ib puag ncig. Tsis muaj kev cia siab rau cov khoom siv hluav taws xob sab nraud, ua kom muaj kev ua haujlwm tsis tu ncua txawm tias ncig saib thaj chaw thaj chaw zoo nkauj lossis chaw nres nkoj rau ncua sij hawm hauv thaj chaw ua lag luam, lav tsis muaj kev cuam tshuam cov kev ua si.

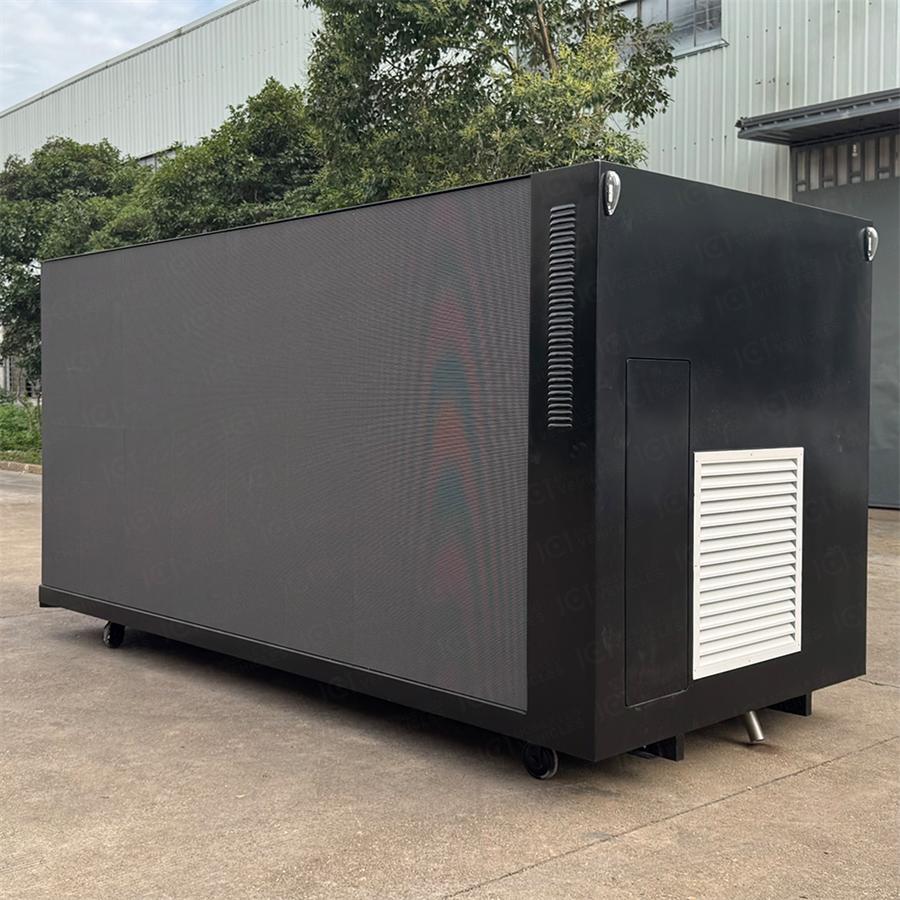

Lub chassis-dawb tsim nrog 3360mm wheelbase ua kom hloov tau yooj yim thiab txhim khu kev ruaj ntseg. Featuring lub modular "tsheb chassis-dawb" architecture, nws seamlessly integrates nrog tsheb chassis ntawm ntau hom thiab tonnages, tshem tawm qhov xav tau rau kev cai tsheb hloov kho thiab txo tus nqi pib peev. Lub 3360mm wheelbase guarantees ruaj khov nyob rau hauv lub maneuvers thaum lub sij hawm maneuvers (txo swaying thaum lub sij hawm lem) thaum ua kom du navigation los ntawm txoj kev nqaim thiab coj mus muag alleys, ua tau raws li ntau yam kev cai saib xyuas nyob rau hauv ntau yam scenarios.
Qhov no 3D liab qab-qhov muag LED lub tsheb thauj khoom cabin zoo kawg nkaus haum rau kev tshaj tawm cov xwm txheej uas xav tau "kev koom tes ua haujlwm thiab muaj zog pom kev cuam tshuam," hloov pauv hom kev txhawb nqa los ntawm "qhov chaw ruaj" mus rau "txhua yam kev txav mus los." Hom kev ncig xyuas / nroog cov phiaj xwm: Piv txwv li, thaum lub tsheb tshiab los yog cov khoom lag luam tawm, tsav tsheb LED los ntawm cov hlab ntsha hauv nroog, cov cheeb tsam kev lag luam, thiab cov tsev kawm ntawv qib siab, peb qhov muag liab qab 3D cov ntxaij vab tshaus tuaj yeem ntes cov neeg caij tsheb ceev ceev, ua tiav peb zaug ntawm qhov ua tau zoo ntawm cov ntawv teev npe zoo li qub.
Kev khiav tsheb khiav ntawm cov xwm txheej: Thaum lub sijhawm cov xwm txheej loj xws li suab paj nruag festivals, khoom noj khoom haus festivals, thiab kev nthuav qhia, cov tsheb nres nyob ib ncig ntawm qhov kev tshwm sim tuaj yeem tig rau ntawm lub vijtsam puv los ua si cov txheej txheem kev tshwm sim, cov ntaub ntawv qhua lossis cov txiaj ntsig sib tham, uas tuaj yeem coj cov neeg nyob ib puag ncig mus rau hauv qhov chaw ua yeeb yam thiab dhau los ua "kev nkag mus rau hauv kev sib tw mobile".
Kev Tshaj Tawm Txog Kev Tshaj Tawm / Kev Ceeb Toom Thaum Muaj Xwm Ceev: Thaum lub sij hawm kev kawm txog kev tiv thaiv kev puas tsuaj thiab kev tawm tswv yim rau pej xeem hauv cov zej zog thiab cov cheeb tsam nyob deb nroog, lub vijtsam qhia pom cov ntsiab lus pom, thaum lub vijtsam tom qab qhia cov xov tooj hu xov tooj thaum muaj xwm ceev. Cov cuab yeej chassis sib raug zoo thiab lub zog ywj pheej ua kom nws mus txog thaj chaw deb, daws qhov kev sib tw ' mais kawg' hauv kev paub txog pej xeem.
| Qeb Parameter | Cov kev txwv tshwj xeeb | tus nqi tseem ceeb |
| Screen Configuration | Sab laug & sab xis: 3840mm × 1920mm Tsheb: 1920mm × 1920mm | 3-sided kev pab them nqi nrog dual-directional visibility thiab rear dig muag-qhov chaw tshem tawm |
| tso saib cov txheej txheem | HD LED + seamless splicing + liab qab-qhov muag 3D adaptation | High-definition clarity thiab liab qab-qhov muag 3D nyhuv rau ntau immersion |
| Fais fab mov | 15 kW generator teeb (EPA ntawv pov thawj) | Kev ywj pheej fais fab mov rau 8-10 teev, ua raws li ib puag ncig |
| configuration tsim | Tsis muaj tsheb chassis (modular); sab laug-log tsav wheelbase 3360mm | Tau tshaj ntau lub tsheb qauv, nrog kev ruaj khov thiab hloov tau yooj yim |
| Kev ntsuas IP | IP65 waterproof thiab plua plav; Ua haujlwm kub ntau: -20 ℃ to 60 ℃ | Sab nraum zoov siv tag nrho cov huab cua, nag thiab cua |
Txawm hais tias koj xav ua kom lub hom phiaj txhawb nqa 'los ciaj sia' lossis tsim 'kev pom qhov pom kev pom zoo' rau cov xwm txheej, qhov no 3D liab qab-qhov muag LED lub tsheb thauj khoom cabin muab cov kev daws teeb meem zoo tshaj plaws. Ntau tshaj li ib qho 'mobile screen', nws yog 'wow visual carrier' uas cuam tshuam cov neeg tuaj saib.
