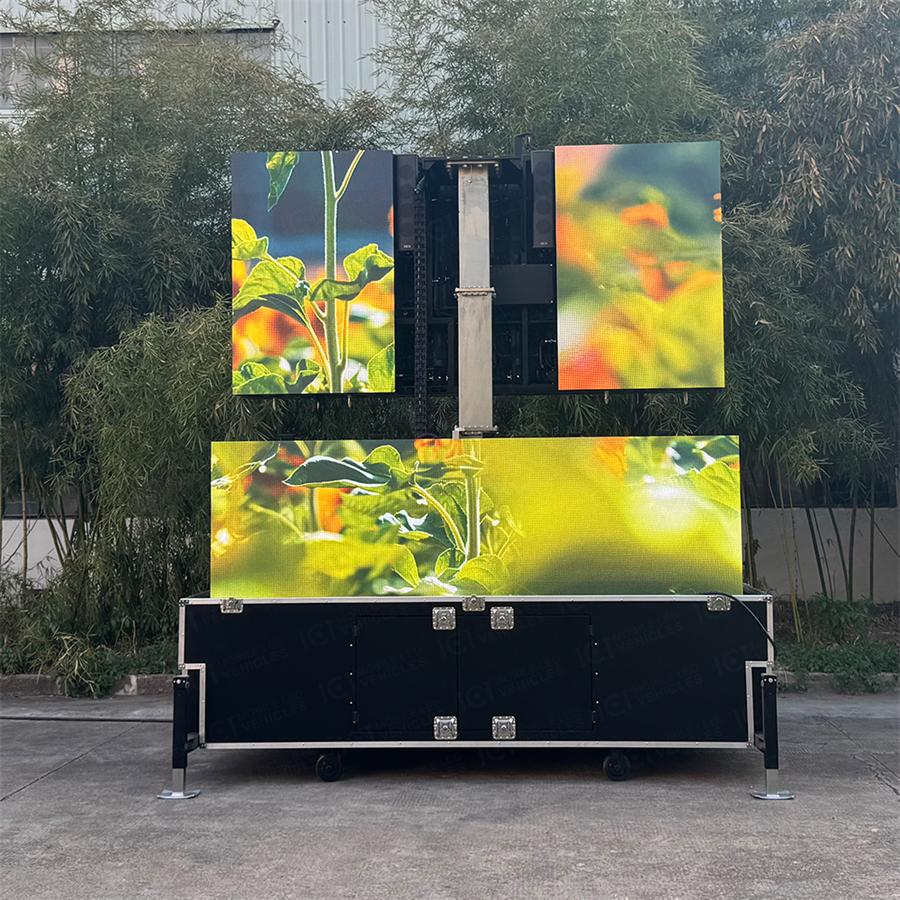

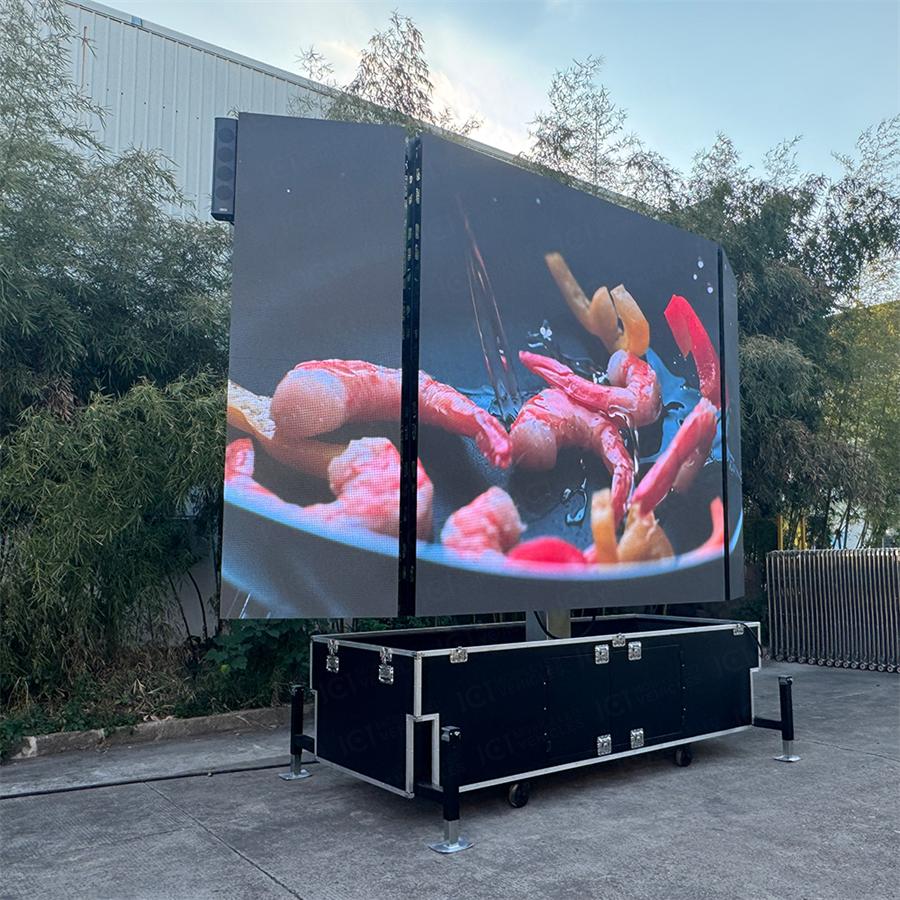

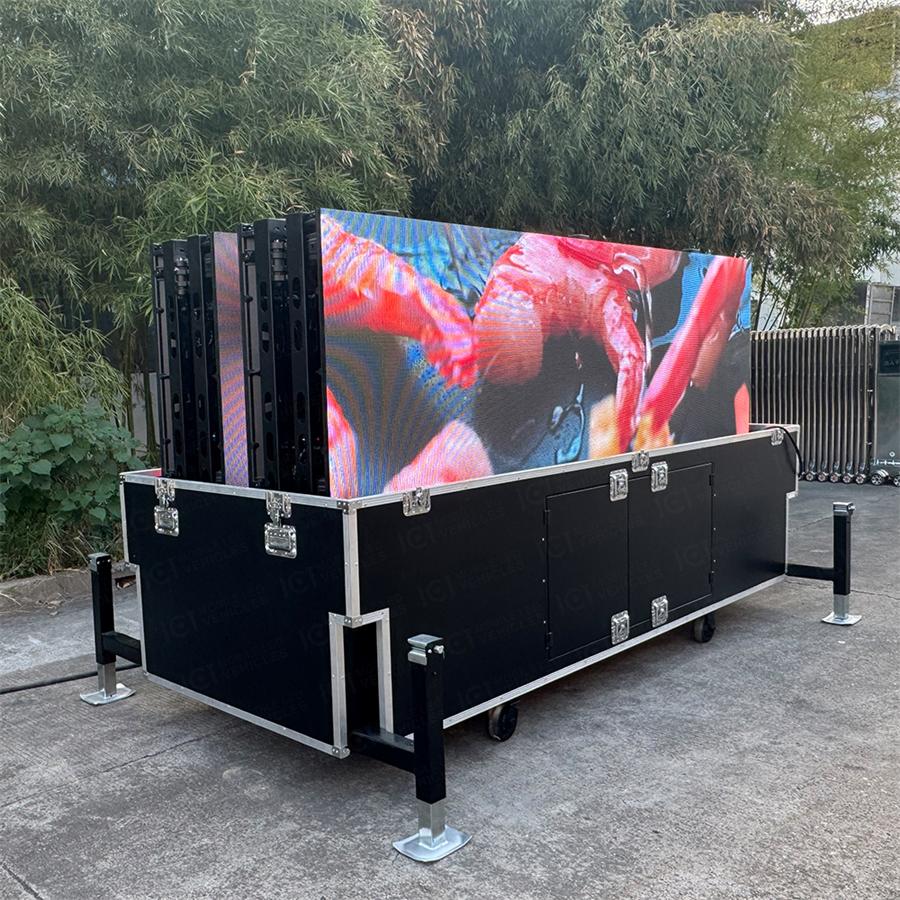

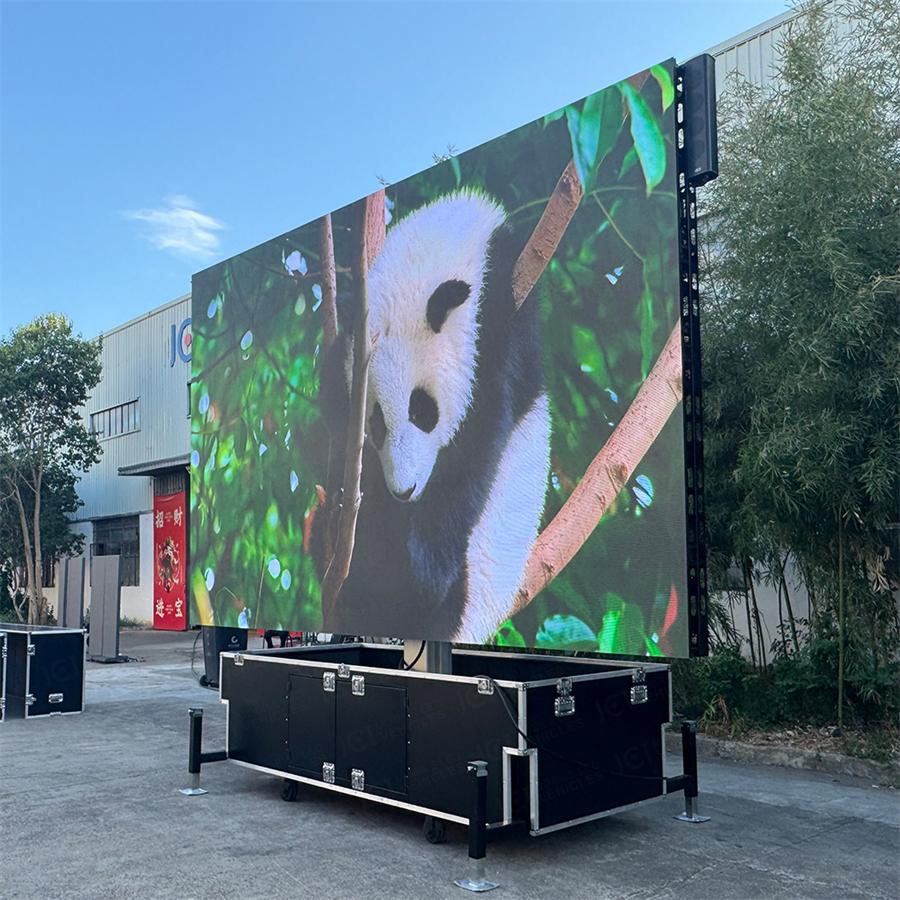

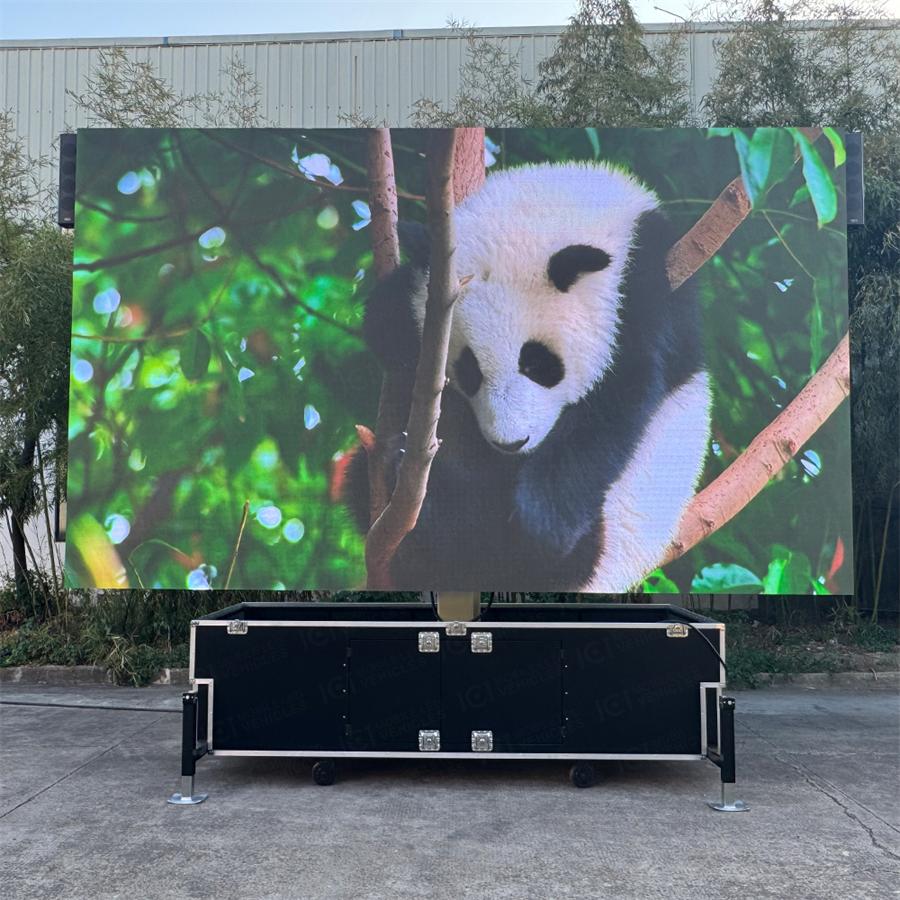

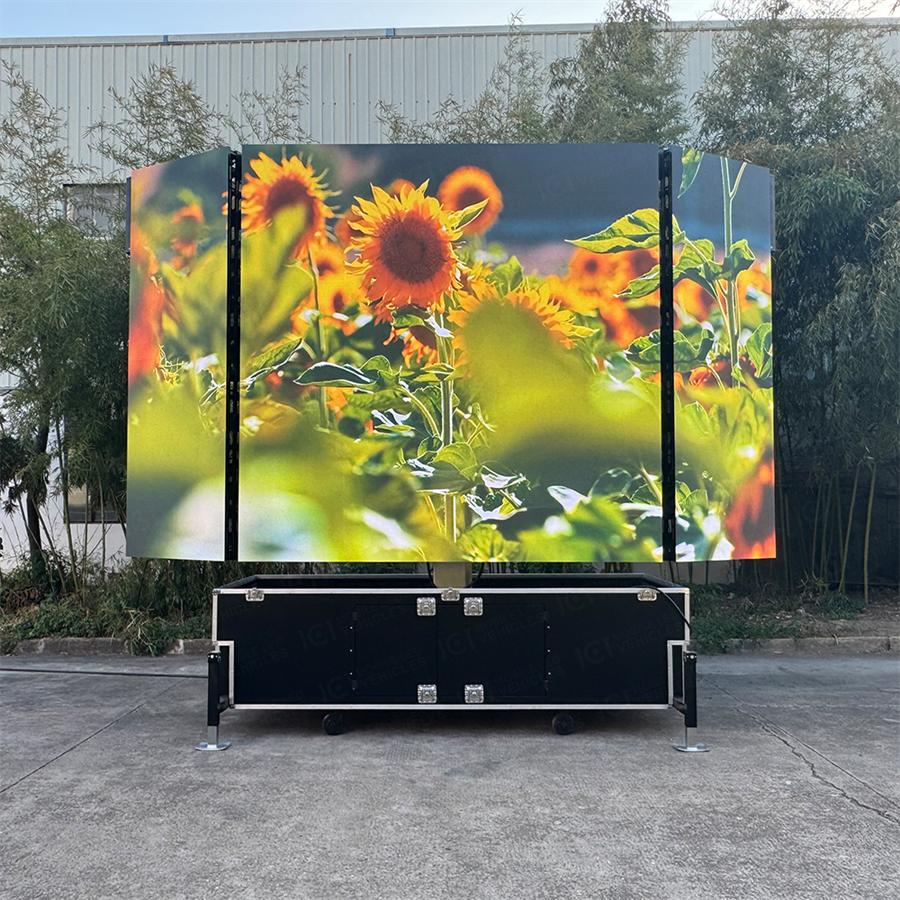

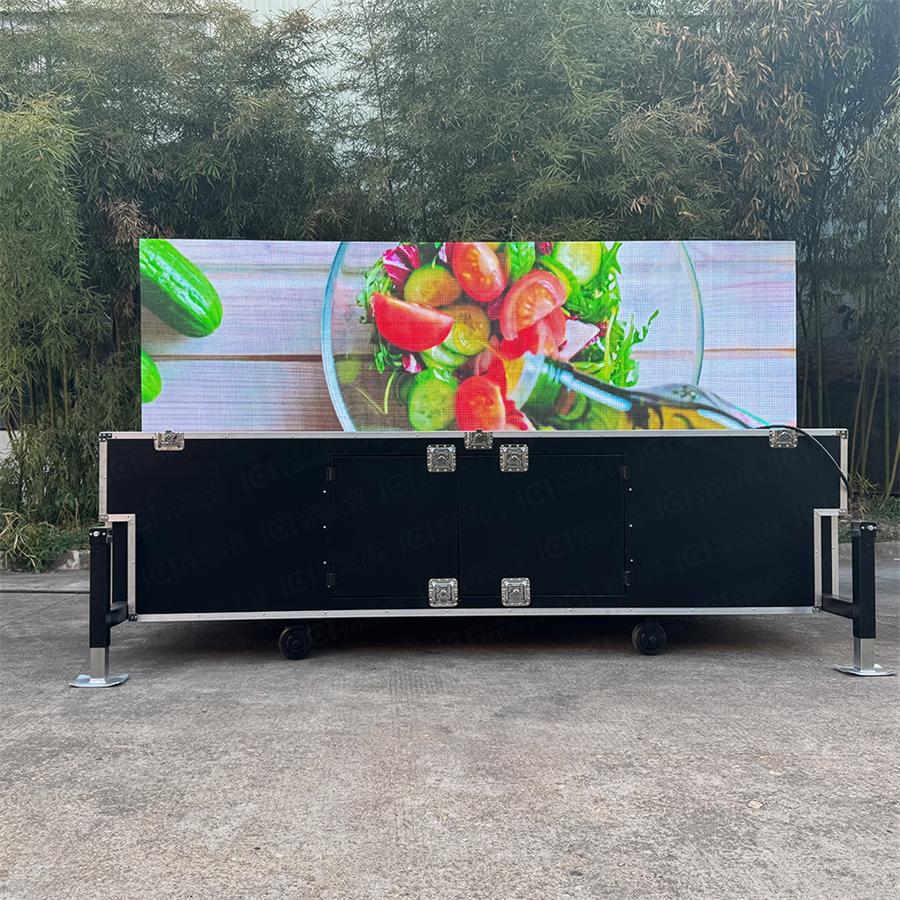

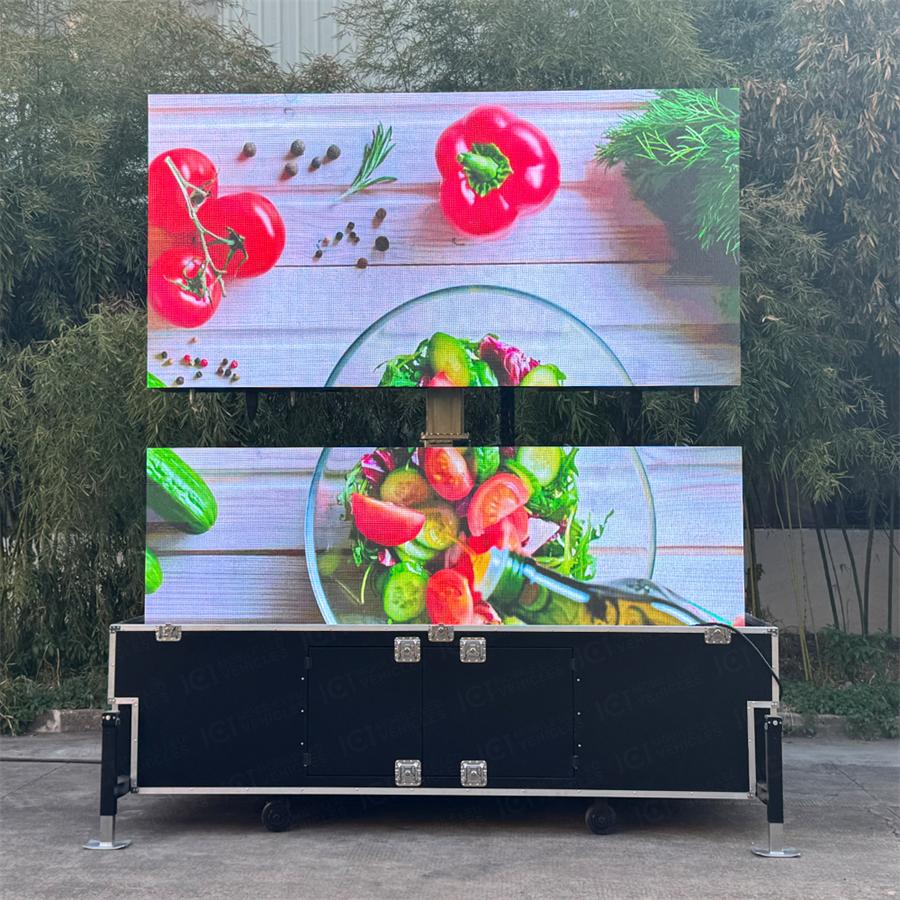

Portable LED Foldable Screen (Sab nraum zoov TV)
| Specification | |||
| Flight case tsos | |||
| Davhlau caseize | 3100 × 1345 × 2000mm | Universal log | 500kg, 4 pcs |
| Tag nrho qhov hnyav | 1200 KG | Flight case parameter | 1, 12mm plywood nrog dub fireproof board 2, 5mmEYA/30mmEVA 3,8 puag ncig kos tes 4, 6 (4 "xiav 36-dav txiv qaub log, kab pheeb ces kaum nres) 5, 15MM log phaj Rau, rau lub xauv 7. Qhib lub hau npog tag nrho 8. Nruab me me ntawm galvanized hlau phaj rau hauv qab |
| LED Screen | |||
| Dimension | 5000mm * 3000mm, sab nraum zoov coj screen | Module Loj | 250mm (W) * 250mm (H) |
| Lub teeb hom | Kinglight | Dot Pitch | 3, 91mm |
| Brightness | 5000cd / ㎡ | Lub neej ntev | 100,000 teev |
| Kev siv hluav taws xob nruab nrab | 250w / ㎡ | Kev siv hluav taws xob Max | 700w/w |
| Fais fab mov | E-zog | DRIVE IC | TSI 2153 |
| Tau txais daim npav | Nova MRV 208 | Tus nqi tshiab | ib 3840 |
| Cov khoom siv txee | Tuag casting aluminium | Txee hnyav | ua 6kg |
| Kev tu hom | Kev pabcuam pem hauv ntej thiab nram qab | Pixel qauv | 1R1G1B |
| LED ntim txoj kev | SMD1921 | Kev khiav hauj lwm voltage | DC 5 V |
| Module zog | 18 W | scanning txoj kev | 1/16 |
| HUB | HUB 75 | Pixel ceev | 65410 Dots/㎡ |
| Module daws teeb meem | 64 * 64 Dots | Ncej tus nqi / Greyscale, xim | 60Hz, 13 ntsis |
| Saib lub kaum sab xis, npo flatness, module clearance | H: 120 ° V: 120 °, 0.5mm, 0.5mm | Ua haujlwm kub | -20 ~ 50 ℃ |
| kev txhawb nqa | Windows XP, WIN 7, | ||
| Fais fab parameter (sab nraud prower mov) | |||
| Input voltage | 3 theem 5wires 380V | Output voltage | 220 V |
| Inrush tam sim no | 20 A | ||
| Tswj qhov system | |||
| tau txais daim npav | 40 pcs | NOVA TU 15 PRO | 1 pcs |
| Hydraulic nqa | |||
| Hydraulic Lifting thiab folding system | Lifting Range 2400mm, bearing 2000kg | Quav lub pob ntseg ntawm ob sab | 4pcs hluav taws xob pushrods folded |
| Kev sib hloov | Electric tig 360 degrees | ||
Peb rov xav txog kev sib raug zoo ntawm "cov cuab yeej ua haujlwm tshaj lij" thiab "kev txav tau zoo", thiab txhaj tshuaj aviation-qib cia lub tswv yim rau hauv cov khoom lag luam, kom txhua qhov kev thauj mus los thiab kev xa tawm yooj yim thiab dawb.
Kev khaws cia, kev thauj mus los tsis muaj kev txhawj xeeb: Siv 3100 × 1345 × 2000mm txheem aviation thawv, 5000 × 3000mm lub vijtsam loj tuaj yeem khaws cia tag nrho, tsim nyog rau kev thauj mus los zoo tib yam, tsis muaj kev thauj khoom tshwj xeeb.
Kev txav tau yooj yim thiab txav tau yooj yim: Cov ntaub ntawv aviation nta lub log log hnyav rau hauv qab, tso cai rau 2-4 tus neeg siv zog thawb thiab rov tso nws, tshem tawm qhov hassle ntawm "ntau tus neeg nqa lossis kev pabcuam forklift". Modular tsim rau kev sib dhos yooj yim: Ua los ntawm 50 tus qauv 500 × 500mm LED modules, nws tuaj yeem kho ua ke los tsim 5000 × 3000mm loj screen lossis hloov kho rau qhov sib txawv ntawm qhov ntau thiab tsawg raws li qhov chaw yuav tsum tau, haum rau txhua yam los ntawm cov rooj muag khoom pop-up mus rau cov xwm txheej loj.
One-touch ua haujlwm ua rau kev xa tawm hauv 10 feeb. Peb cov ntaub ntawv davhlau ya nyob twg nta ib qho screen LED foldable nrog ib lub khawm chaw taws teeb tswj, tag nrho automated rau kev tshuaj ntsuam, nqa, thiab folding. Los ntawm unboxing mus rau kev tshuaj ntsuam qhib, tag nrho cov txheej txheem yuav siv sij hawm 10 feeb xwb. Kev khaws cia tom qab kev tshwm sim yog qhov sib npaug, txo qhov chaw npaj thiab sijhawm khiav tawm.
High-txhais sab nraum zoov zaub nrog siv lead ua-ntshiab cov ntsiab lus: Featuring tshwj xeeb HD sab nraum zoov cov ntxaij vab tshaus nrog grain-dawb pom kev, lub kaw lus no ua kom meej meej meej rau cov khoom nthuav qhia, cov yeeb yaj kiab tshaj tawm, thiab cov ntaub ntawv xa mus rau qhov xwm txheej ceev. Tus qauv tsim qauv rau kev saib xyuas yooj yim: Lub vijtsam yog tsim los ntawm 250 × 250mm qauv qauv. Thaum ib qho module ua tsis tau, tsuas yog hloov nws yam tsis tau rhuav tshem tag nrho cov zaub, txo cov nqi tu thiab sijhawm poob.
Sab nraum zoov-qib tiv thaiv rau txhua lub huab cua: Tshaj li cov ntsiab lus siab, lub vijtsam nta dej tsis zoo, tsis muaj plua plav, thiab UV-tiv taus, ua ke nrog lub zog 500 × 500mm txee qauv, ua kom ruaj khov hauv nag, xuab zeb, thiab hnub ci ncaj qha.
Cov ntaub ntawv davhlau ya nyob twg LED foldable screen (sab nraum zoov TV) tsim los ntawm JCT yeej tsis yog qhov kev xav xwb - nws yog ib qho kev daws teeb meem rau ntau hom kev siv hauv ntiaj teb.
Kev lag luam pop-up exhibitions: Lub laub airshow portable ua rau seamless hla kev ncig xyuas lub nroog, tso cai rau cov lag luam los txhawb lawv cov phiaj xwm nrog kev teeb tsa tsawg. Cov kev ua si thiab kev lom zem: Featuring 5000 × 3000mm sab nraum zoov HD screen, nws ua tau raws li qhov xav tau ntawm kev saib kev hais kwv txhiaj, kev ua kis las, thiab cov haujlwm zoo sib xws.
Kev ceeb toom thaum muaj xwm txheej ceev thiab kev tshaj tawm txog kev pabcuam pej xeem: Lub thawv cua txias tuaj yeem thauj tau sai sai rau qhov chaw cawm. Nrog ib-nias lub vijtsam teeb pom kev zoo thiab cov ntsiab lus siab, nws tuaj yeem nthuav qhia daim duab qhia, cov ntaub ntawv thiab cov lus qhia, thiab tuaj yeem xa mus sai sai li ntawm 10 feeb kom tau raws li qhov xav tau siab ntawm lub tsheb hais kom ua thiab lub hauv paus chaw ua haujlwm ib ntus.
Txawm hais tias koj yog ib lub lag luam ncig xyuas ntau lub nroog, ib lub koom haum npaj kev ua yeeb yam loj, lossis ib lub koom haum xav tau kev daws teeb meem thaum muaj xwm txheej ceev, qhov no portable LED foldable screen (sab nraum zoov TV) nrog 'multi-scenario adaptability' yog tsim los ua kom tau raws li koj xav tau.
